OVERVIEW

The T-MF-GNSS-300 features configurable tracking channels that optimise satellite availability in any operational condition. It supports tracking of all current and upcoming GNSS constellations and signal types, including GPS, GLONASS, Galileo, BeiDou, NavIC, and SBAS. Designed for future readiness, the receiver can be updated via software upgrades to accommodate modernised satellite signals introduced by global space agencies, ensuring continued compatibility without the need for hardware replacement.

A comprehensive range of interface options including Serial, USB, and Ethernet facilitates straightforward integration into existing system architectures. With TerraStar satellite-delivered correction services, the T-MF-GNSS-300 achieves centimetre-level positioning accuracy globally, without dependency on local reference station networks or expensive communications infrastructure.

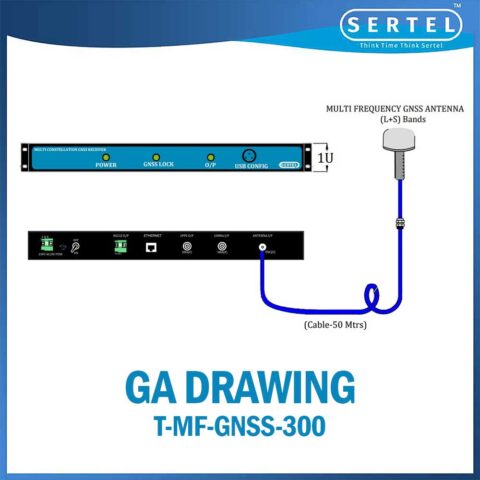

GA-Drawing-T-MF-GNSS-300

Key Features:

  • Multi-frequency, multi-constellation GNSS receiver for high-precision positioning
  • Supports GPS, GLONASS, Galileo, BeiDou, NavIC, and SBAS
  • Delivers centimetre-level accuracy with TerraStar correction services
  • Compact design ideal for space-constrained applications
  • ≥200 tracking channels for enhanced satellite availability
  • Advanced interference mitigation for reliable performance in harsh environments
  • Multiple interfaces including Serial, USB, and Ethernet connectivity
  • Field-upgradeable firmware supporting scalable positioning accuracy levels
  • IP65/IP67 rated for rugged outdoor and industrial applications
  • Supports RTK, PPP, and GNSS+INS advanced positioning technologies
TECHNICAL SPECIFICATIONS
GNSS
Model noT-MF-GNSS-30
GNSS BandL1(1559-1610),L2(1217-1300),L5(1164-1215) & S Band(2483.5-2500.3) Mhz
Constellation supportGPS, GLONASS, GALILEO, BEIDOU, NAVIC, L1-SBAS
Signal/Bands support1.GPS : L1 C/A, LIC, L2C, L5; 2.GLONASS : L1 C/A, L2 C/A, L3 CDMA; 3.GALILEO : E1, E5A, E5B, E5 ALTBOC, E6; 4.BEIDOU : B1I, B1C, B21, B2A, B2B, B3I; 5.NAVIC : L5(SPS), S(SPS) SBAS-L1
Multi Constellation & Multi Frequency selectionFront view of the system has a Ballon connector based USB Port, Where we can Connect to PC/Laptop directly can access Sertel User Interface Software to configure settings like, Multiconstellations/ Frequencies, NEMA Formats and other settings.
Output FormatNMEA/ RINEX/ RTCM
Tracking codeCA
No. of Channels & SatelliteGreater Than or Equal to 250 Channel / Parallel & IRNSS(NavIC)-6 Nos
Tracking MethodCode / Carrier Tracking
Interface TLL (normal high)
Output Rate Every second
Output DataPosition, Velocity & Time solutio
Geodetic systemWGS-84
Input & Input connectorAntenna Input & TNC Connector
OscillatorOCXO (internal-optional)/external
Battery BackupRTC Backup
Signals Inputs/Outputs
NameConnector / Quantity / Location
USB CONFIG I/OUSB BASED BALLON / 01 NO / Front Plate
ETHERNET I/ORJ45 Connector / 01 NO / Back Plate
RS232 O/PPHEONIX Connector / 01 NO / Back Plate
PPS O/PSMA(F) Connector / 01 NO / Back Plate
10 MHz I/PSMA(F) Connector / 01 NO / Back Plate
IP ProtectionIP 20
Environmenta) OP Temp: -10 to +55 Deg.Cen b)ST Temp: - 40 to +80 Deg.Cen b) RH : 0-95%
MountingPanel Mounting to suit 19" rack
Power Supply230V AC/DC
Quantity02 Nos
TECHNICAL SPECIFICATIONS
ManufacturerSERTEL
Model noT-GPA-014-S15
Receiving Frequency"L1(1559-1610), L2(1217-1300), L5(1164-1215) & S Band(2483.5-2500.3) MHz"
PolarizationRight hand circular polarization
NoiseLess Than 3.0 dB Maximum (25°C ± 5°C)
Gain28 dB ± 3 dB
Tracking codeCA
No. of ChannelsGreater Than or Equal to 250 Channel / Parallel
Output rateEvery second
Geodetic systemWGS-84
Input connectorTNC(F) Connector
Ingress ProtectionIP 67
Environmenta) TEMP : -40 TO 85 DEG.CEN, b) RH : 0-95%
MountingWall mounting
Quantity02 Nos.
